It is installed between the primary steam line and the impulse lines to trap condensate.
Best Needle Valve Manufacturers in India

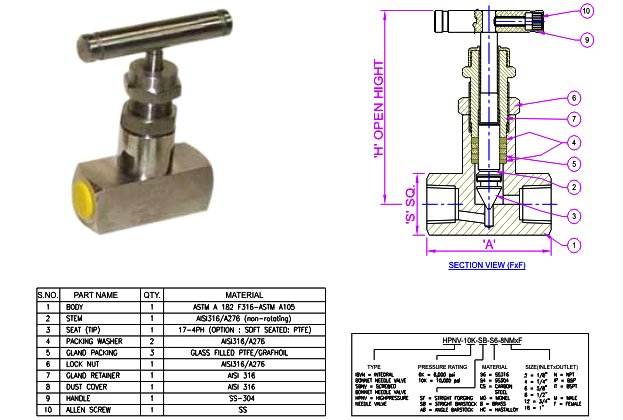

High Pressure Needle Valve Female *Female NPT Manufacturer, Supplier & Exporter in India
| Tubefit part no. | H | Size | CV | A’ | S-SQ | ORIFICE |
| HPNV-10K-SB-S6-4NM*4F | 86 (3.38″) | 1/4″ | 0.35 | 55(2.16″) | 25.4(1″) | 3.5 (0.14″) |
| HPNV-10K-SB-S6-6NM*6F | 86 (3.38″) | 3/8″ | 0.86 | 55(2.16″) | 28(1.1″) | 3.5 (0.14″) |
| HPNV-10K-SB-S6-8NM*8F | 98(3.86″) | 1/2″ | 1.4 | 75 (2.95″) | 34(1.34″) | 4.8(0.19″) |
| HPNV-10K-SB-S6-12NM*12F | 98(3.86″) | 3/4″ | 1.8 | 80 (3.15″) | 38.1(1.5″) | 6.4(0.25″) |
| HPNV-10K-SB-S6-16NM*16F | 102(4.01″) | 1″ | 2.2 | 90(3.54″) | 45(1.77″) | 9.5(0.37″) |
Above part nos are only for SS 316 material of construction. In case of any other material of construction kindly mention in the order details.
Features:
- One piece body construction for high strength & full safety , no welding ss316 one piece body construction for superior corrosion resistance excellent surge and instrument damage
- Spindle : ground and thread rolled.stem tip 17-4ph for long life.
Precision Needle Valve Solutions for Industrial Flow Control Systems
Mcneil Air Header is a trusted Needle Valve Manufacturer, Needle Valve Supplier, and Needle Valve Exporter in India, delivering precision-engineered needle valves designed for accurate flow regulation, pressure control, and leak-proof shut-off performance in industrial applications. Our needle valves are manufactured using advanced engineering techniques and high-quality industrial materials to ensure reliable performance under demanding operating conditions.
As an experienced Needle Valve Manufacturer, we provide high-performance industrial needle valves suitable for instrumentation systems, hydraulic systems, pneumatic systems, oil & gas industries, offshore platforms, refineries, power plants, and chemical processing industries worldwide.
What Is a Needle Valve?
A needle valve is a precision flow control valve designed with a tapered needle-shaped stem that allows accurate adjustment of fluid or gas flow within industrial piping systems. These valves are commonly used where precise flow regulation and controlled shut-off are required.
Industrial needle valves are widely used in:
- Instrumentation systems
- Hydraulic systems
- Pneumatic systems
- Pressure control systems
- Gas distribution systems
- Process automation systems
- Industrial fluid handling applications
A properly designed needle valve improves operational safety, process accuracy, and system efficiency.
Leading Needle Valve Manufacturer in India
Being a reliable Needle Valve Manufacturer in India, Mcneil Air Header manufactures high-quality industrial needle valves developed according to international quality standards and industrial operating requirements.
Our manufacturing capabilities include:
- Instrumentation Needle Valve Manufacturing
- High Pressure Needle Valve Production
- Industrial Needle Valve Solutions
- Process Control Needle Valve Manufacturing
- Hydraulic Needle Valve Production
- Pneumatic Needle Valve Systems
Each valve undergoes strict inspection and pressure testing procedures to ensure dependable industrial performance.
Types of Needle Valves We Manufacture
As a trusted Needle Valve Supplier and Exporter, we manufacture multiple valve designs for different industrial applications.
Straight Needle Valve
Designed for direct flow applications requiring precise flow regulation.
Angle Needle Valve
Suitable for compact piping layouts and directional flow control systems.
High Pressure Needle Valve
Manufactured for demanding industrial applications operating under elevated pressure conditions.
Instrumentation Needle Valve
Widely used in instrumentation panels and process control systems.
Hydraulic Needle Valve
Designed for hydraulic systems requiring controlled fluid flow regulation.
Pneumatic Needle Valve
Used for compressed air and pneumatic process applications.
Multi-Port Needle Valve
Provides multiple flow path management within industrial instrumentation systems.
Needle Valve Configurations Available
As a professional Needle Valve Manufacturer and Supplier, we provide multiple valve configurations according to industrial operating requirements.
- 2 Way Needle Valve
- 3 Way Needle Valve
- Multi-Port Needle Valve
- High Pressure Needle Valve
- Instrumentation Needle Valve
- Threaded Needle Valve
- Socket Weld Needle Valve
Customized valve configurations are also available according to project specifications.
Materials Used in Needle Valve Manufacturing
As a global Needle Valve Exporter, we manufacture valves using premium industrial materials suitable for high-pressure and corrosive operating conditions.
Alloy Steel Needle Valves
- ASTM A182 F5 Needle Valve
- ASTM A182 F11 Needle Valve
- ASTM A182 F22 Needle Valve
- ASTM A182 F91 Needle Valve
Exotic Alloy Needle Valves
- Monel 400 Needle Valve
- Monel K500 Needle Valve
- Inconel 600 Needle Valve
- Inconel 625 Needle Valve
- Incoloy 825 Needle Valve
- Hastelloy C276 Needle Valve
These materials ensure excellent durability, corrosion resistance, and pressure handling capability.
Technical Specifications of Needle Valves
Parameter | Specification |
Size Range | 1/4” to 1” |
Pressure Rating | Up to 10,000 PSI |
End Connections | NPT, BSPT, Socket Weld |
Valve Type | Straight, Angle, Multi-Port |
Material Grades | Alloy Steel & Exotic Alloys |
Testing | Hydrostatic & Pneumatic Testing |
Temperature Range | As per material grade |
Applications of Industrial Needle Valves
Being a trusted Needle Valve Exporter, we supply industrial needle valves for multiple industries worldwide.
Oil & Gas Industry
Used in instrumentation systems, pressure control systems, and process piping applications.
Petrochemical Industry
Provides accurate flow regulation for chemical processing systems.
Power Generation Plants
Used in steam systems, turbines, condensers, and instrumentation applications.
Chemical Processing Industry
Ensures safe and precise flow control in corrosive environments.
Offshore & Marine Industry
Suitable for offshore instrumentation and marine process systems.
Hydraulic Systems
Provides controlled fluid flow management for industrial hydraulic applications.
Pneumatic Systems
Used for compressed air flow regulation and pressure control systems.
Refineries
Supports industrial automation and instrumentation applications.
Features of Industrial Needle Valves
Precise Flow Control
Designed for accurate regulation of liquid and gas flow systems.
Leak-Proof Sealing
Precision engineering ensures safe shut-off and reliable sealing performance.
High Pressure Capability
Suitable for demanding industrial and instrumentation applications.
Corrosion Resistance
Available in alloy steel and exotic alloy material grades.
Long Operational Life
Heavy-duty valve construction improves durability and reduces maintenance requirements.
Easy Installation
Compact valve design simplifies industrial piping installations.
Why Choose Mcneil as Your Needle Valve Supplier?
As a trusted Needle Valve Supplier, we focus on delivering industrial valve solutions designed for long-term industrial reliability and operational safety.
Why Industries Choose Us
- Advanced manufacturing infrastructure
- Precision engineering capabilities
- Strict quality inspection procedures
- High-pressure valve solutions
- Customized engineering support
- International quality standards
- Fast global delivery support
- Reliable technical assistance
Our industrial needle valves are trusted worldwide for dependable performance and process efficiency.
Global Needle Valve Exporter for Industrial Projects
Mcneil Air Header is a professional Needle Valve Exporter supplying industrial needle valves to domestic and international markets with complete quality assurance and technical documentation support.
We provide:
- Export-quality packaging
- Customized valve solutions
- Global industrial supply support
- Timely project deliveries
- Technical documentation assistance
Our goal is to deliver high-performance needle valve systems that improve industrial efficiency and operational reliability.
Types of Needle Valves

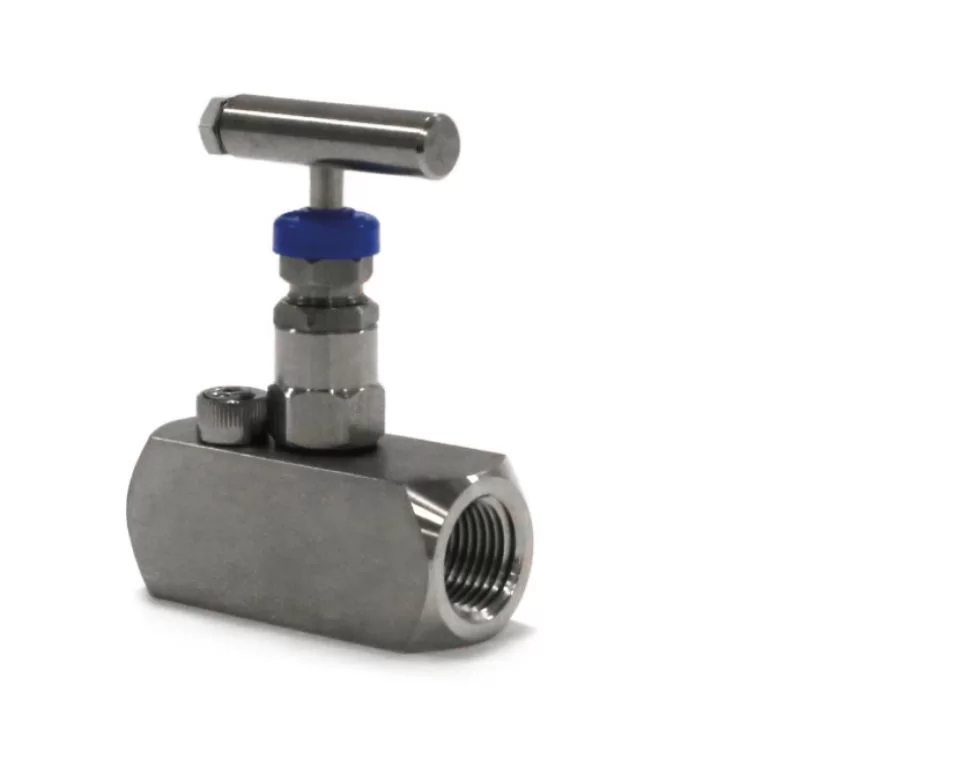

Type N / UN
| Connection Size | 1/4″ – 1″ |
| Pressure Rating | 6000 – 10,000 psi |
| Temp. Range | -40°C up to 230°C |
The metal-to-metal seat and body-to-bonnet connection used in the expertly crafted “N” Series single isolation hand valve provide outstanding, bubble-tight sealing qualities at high pressures and temperatures. The ‘N’ Series additionally includes a non-rotating toughened tip for increased service life.
Type PV
| Connection Size | 1/4″ – 1″ |
| Pressure Rating | 6000 – 10,000 psi |
| Temp. Range | -40°C up to 230°C |
The ‘PV’ Series rising plug valve provides bubble-tight isolation with a regenerative soft seat. It also has a clear bore, a high flow, and precise control, making it roddable. Excellent for usage under high pressure with viscous materials.

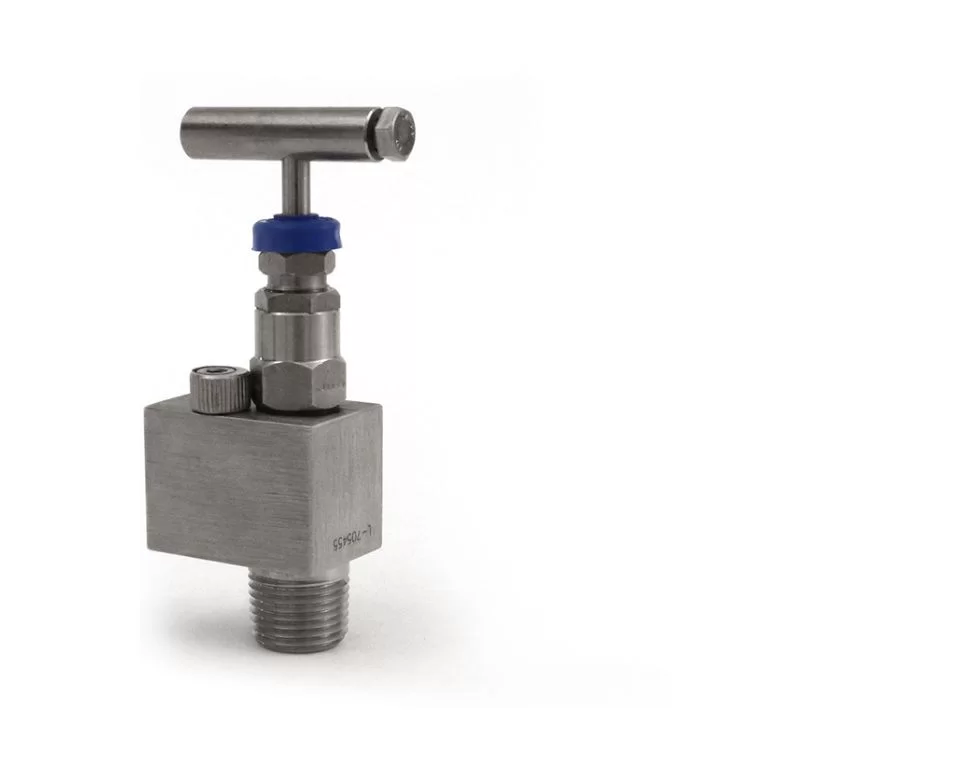

Type AV
| Connection Size | 1/4″ – 1″ |
| Pressure Rating | 6000 – 10,000 psi |
| Temp. Range | -40°C up to 230°C |
The ‘AV’ Series 90° angle pattern needle valve provides high pressure bubble tight sealing in a small body and enables pipe work origination to alter by 90° at the valve.

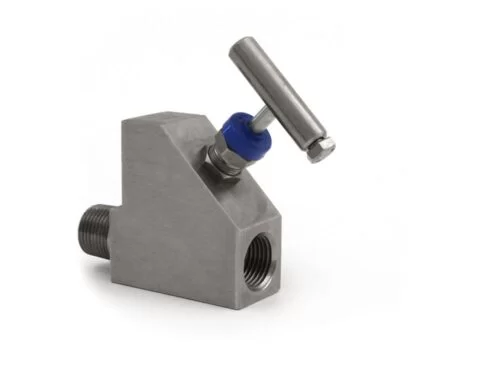

Type OB
| Connection Size | 1/4″ – 3/4″ |
| Pressure Rating | 6000 – 10,000 psi |
| Temp. Range | -40°C up to 230°C |
Due to the nearly straight bore through the valve, the ‘OB’ Series has significantly less pressure drop and flow restriction than a typical needle valve. The inclined head unit and handle make it user-friendly. especially beneficial when used with heavy or viscous fluids.

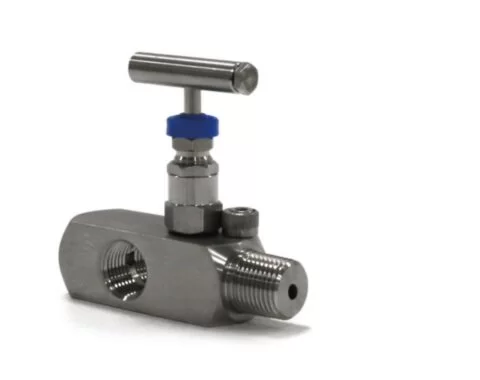

Type GV / UGV
| Connection Size | 1/4″ – 3/4″ |
| Pressure Rating | 6000 – 10,000 psi |
| Temp. Range | -40°C up to 230°C |
The ‘GV’ Series multiport gauge valve features vent and blanked port facilities as well as additional drains, making it an effective way to attach pressure gauges, manometers, pressure transducers, or transmitters in a circuit or system.

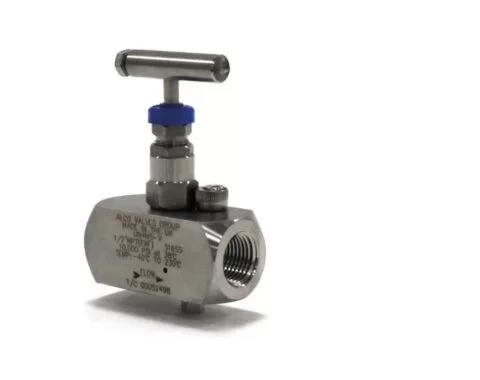

Type UN-V
| Connection Size | 1/4″ – 1″ |
| Pressure Rating | 6000 – 10,000 psi |
| Temp. Range | -40°C up to 230°C |
A single isolation hand valve from the precisely engineered “UN-V” Series uses a metal-to-metal seat and body-to-bonnet connection for better, bubble-tight sealing at high pressures and temperatures.
Types of Needle Valves
Type N / UN
✔ Metal-to-metal sealing
✔ High pressure and temperature resistance
✔ Long service life
Type UN-V
✔ Enhanced sealing
✔ Designed for extreme conditions
2 Way, 3 Way & 4 Way Needle Valves
We offer multiple configurations:
✔ 2-Way: Basic flow control
✔ 3-Way: Mixing/diversion applications
✔ 4-Way: Complex flow management
Specifications:
- Pressure: Up to 10,000 PSI
- Temperature: Up to 1000°F
- Sizes: 1/4″ to 1″
Best Needle Valve Suppliers in India
As a leading needle valve supplier in India, Mcneil Air header delivers premium-quality products tailored for a wide range of industries, including:
✔ Chemical Processing
✔ Steel & Heavy Industries
✔ Petrochemical Plants
✔ Fire Safety Systems
✔ Marine & Shipping
✔ Oil & Gas Sector
Our needle valves are designed and manufactured in strict compliance with international quality standards, ensuring reliability and performance across demanding environments.
We utilize high-grade raw materials and advanced manufacturing processes to produce valves that offer:
✔ Long service life
✔ High corrosion resistance
✔ Superior mechanical strength
✔ Consistent and reliable performance
Additionally, we provide customized needle valve solutions to meet specific client requirements, including variations in size, material, pressure rating, and connection type.
Best Needle Valve Exporters in India
Mcneil Air header is a globally trusted needle valve exporter, supplying high-quality products to a wide range of international markets. Our strong global network enables us to deliver precision-engineered valves to countries such as:
🌍 Kazakhstan, Saudi Arabia, UAE, Oman
🌍 South Africa, Nigeria, Ghana, Egypt
🌍 UK, USA, Canada, Australia
🌍 Malaysia, Singapore, Indonesia, Vietnam
🌍 Brazil, Argentina, Colombia, Mexico
…and many more across Europe, Asia, Africa, and the Americas.
Our commitment to quality, timely delivery, and customer satisfaction has helped us build a strong reputation in the global market.
Specification Format of Needle Valve
To meet the diverse requirements of modern industrial applications, Mcneil Air header offers a comprehensive range of needle valves with versatile specifications, ensuring precision flow control, durability, and compatibility across multiple systems.
General Specifications
- Brand Name:Mcneil Air header
- Valve Size:Available from 1/8″ to 2″ (6 mm to 50 mm), suitable for both compact and large-scale systems
- Thread Types:NPT, BSPP, BSPT, JIC, Metric, UNF for flexible installation options
- Connection Types:Threaded, Tube End, Butt Weld, Socket Weld, Flanged End for seamless integration
Design & Functional Features
- Flow Pattern:Straight, Angle, and Cross configurations to suit different piping layouts
- Functionality:Available in 2-Way and 3-Way designs for flow control, isolation, and diversion
- Body Shape:Square, Round, and Hexagonal body designs for structural strength and ease of installation
- Body Type:Bar Stock and Forged construction for enhanced durability and high-pressure resistance
Performance Specifications
- Pressure Rating:
1500 PSI, 3000 PSI, 6000 PSI, 10,000 PSI, 15,000 PSI, up to 20,000 PSI - Orifice Size:
Ranges from 2 mm to 9.5 mm, enabling precise flow regulation - Operating Temperature:
Suitable for extreme conditions from -120°C to 500°C (depending on pressure and material)
Contact Needle Valve Manufacturer, Supplier & Exporter
Looking for a trusted Needle Valve Manufacturer, reliable Needle Valve Supplier, or experienced Needle Valve Exporter?
Mcneil Air Header delivers high-performance industrial needle valves designed for instrumentation systems, process control applications, hydraulic systems, pneumatic systems, and industrial flow management worldwide.
Application
- Chemicals industry
- Fats and fertilizer industry
- Ship building
- Construction industry
Key Features
- End connection: NPT, BSPT, Socket weld,
- Butt weld, Tube fitting.
- Temperature Rating: PTFE 450F,(232C)/Grafoil 700 F(371C)
- Packing: PTFE, Grafoil
- Panel mounting on request.
- All Vales are 100% factory tested.
Testing
Testing
- standard test: each valves is tested with nitrogen at 1,000 psi for seat & packing leakage, with a max. Allowable leak rate of 0.1 std.cm3/min.
- Hydro test: performed with pure water at 1-1/2 times of the working pressure.

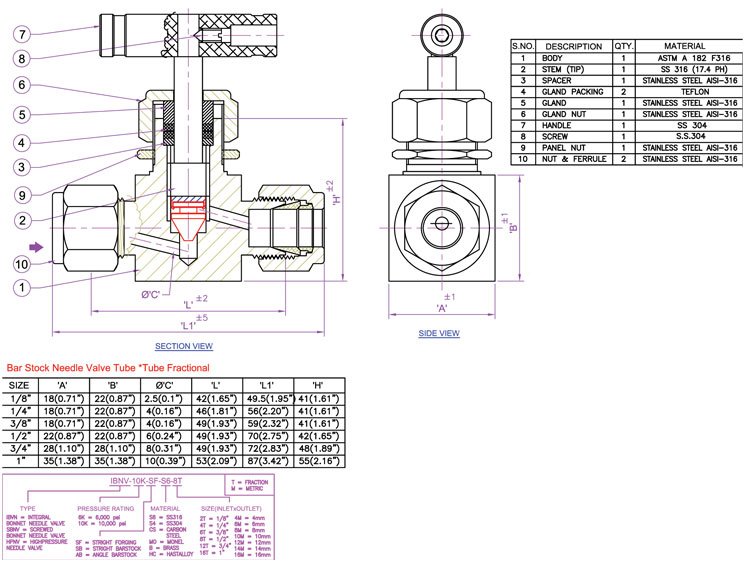

Dimension
Material of Construction
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM SA 182 – E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
FAQ's
1. What is a needle valve used for?
A needle valve is used for precise flow regulation and pressure control in instrumentation, hydraulic, pneumatic, and industrial process systems.
2. Why choose a high pressure needle valve?
High pressure needle valves are designed to handle elevated pressure conditions while providing accurate flow control and leak-proof shut-off performance.
3. Which industries use industrial needle valves?
Industries such as oil & gas, petrochemical, chemical processing, power generation, offshore, marine, and hydraulic industries widely use industrial needle valves.
4. What materials are available for needle valves?
Needle valves are available in alloy steel, Monel, Inconel, Hastelloy, Incoloy, and other corrosion-resistant industrial material grades.
5. Why is Mcneil a trusted needle valve manufacturer?
Mcneil Air Header is trusted for precision manufacturing, strict quality control, high-pressure valve solutions, customized engineering support, and reliable global supply capability.
FAQ's
What is the use of a condensate pot in steam lines?
A condensate pot collects and holds condensate to protect instruments from high-temperature steam.
Where is the condensate pot installed?
What are the standard sizes of condensate pots?
They are typically available in 2”, 3”, 4” diameters with 2 to 6 ports, depending on system requirements.
What is the difference between seal pot and condensate pot?
Seal pot is used in situations where the line fluid is corrosive or viscous to the point where it can be clogged. Condensate pots are primarily used to increase the accuracy of differential pressure flow measurement in steam (or vapor) applications.
What is the purpose of a condensate system?
The fundamental functions include supplying low-pressure water to the deaerator across all operating conditions and providing attemperation water to desuperheater sprays for the LP bypass (if present) and the auxiliary steam system.
